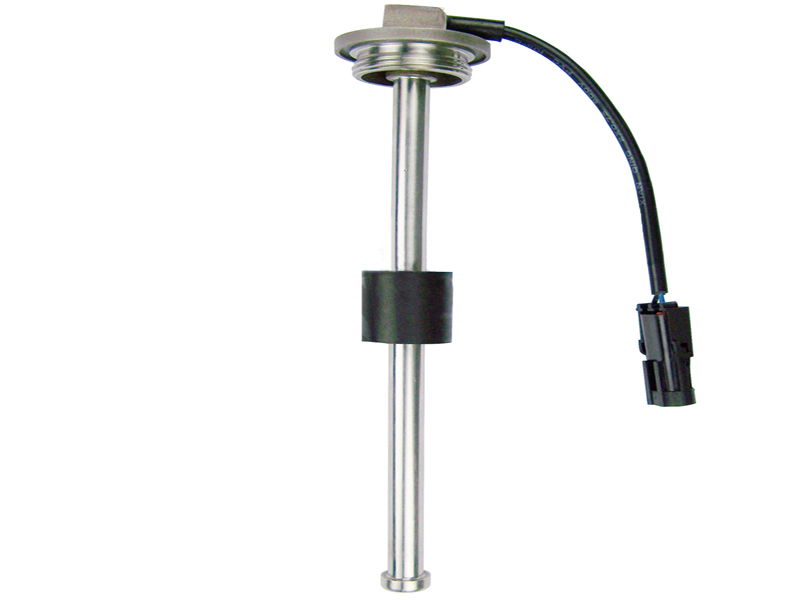

Fuel Level Sensor Model F3

PRODUCT DETAILS

F3 series fuel level sensor

Place of Origin: China

Brand Name: JYM

Model: F3

Certificate: CE

Minimum Order Quantity: 1pcs

Payment Term: T/T, Western Union, L/C

Delivery Time: 15 days after payment



Functions/Features:



-Simple structure, simpleinstallation: mounted flange, international standard SAE 5 holes or SAE 6 holesscrew installation

-Wide range of input voltage: rangingfrom 9V to 36V, adaptable to miscellaneous environment

-Protection against overload, shortcircuit and reverse connection

-Multiple signal output: Voltageoutput 0~5V, Current output: 4~20mA, Resistance output: 0~190Ω



Specifications:



Principle of signal acquisition

Float moving

Feeding (input powder)

9~36V

Accuracy

<2%

Signal format/ output format (Optional)

Option A: voltage 0~5V

Option B: current 4~20mA

Option C: Resistance 0~190Ω

Communication interface

RS232 or TX485

Measurement range

100mm~2000mm

Housing material

SUS304/316 stainless steel

working temperature

-40℃~+85℃ (-40℉~+185℉)

Lifespan/service

5 million times

Installation

SAE 5 holes or SAE 6 holes

BSP screw or NPT screw

Weight

400g
