Hi-accuracy Fuel Level Sensor Model F8

PRODUCT DETAILS

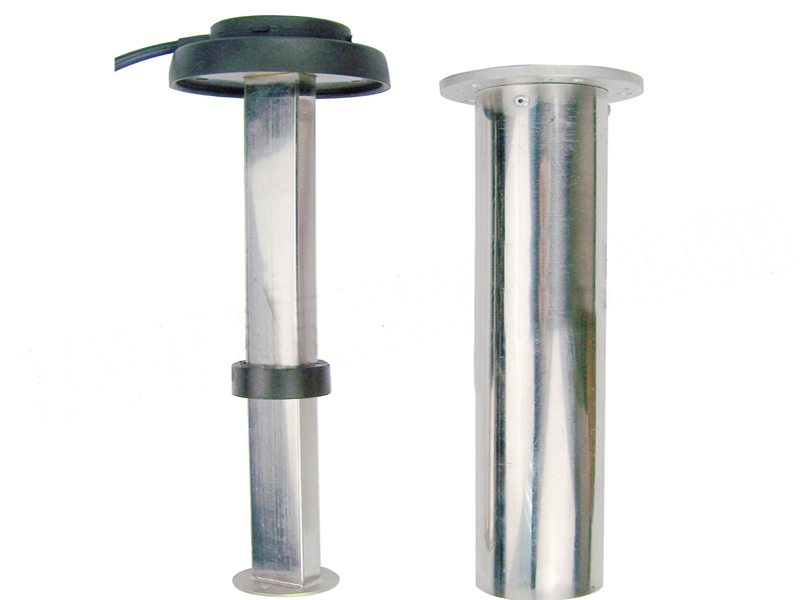

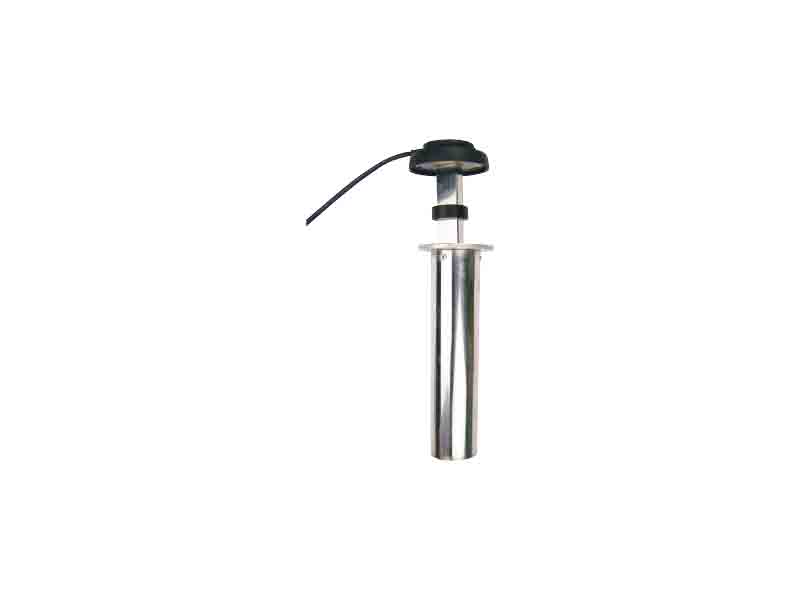

F8 series fuel level sensor

Place of Origin:China

Brand Name: JYM

Model: F8

Certificate: CE

Minimum OrderQuantity: 1pcs

Payment Term:T/T, Western Union, L/C

Delivery Time: 15days after payment



Functions/Features:



-Applicable to:various vessel fuel tanks, vehicle fuel tanks, generator sets, especially to GPS service and transport fleet.

-Simplestructure, simple installation: mounted flange, international standard SAE 5holes or SAE 6 holes screw installation

-Wide range ofinput voltage: ranging from 9V to 36V, adaptable to miscellaneous environment

-Protectionagainst overload, short circuit and reverse connection

-Multiple signaloutput: Voltage output 0~5V, Current output: 4~20mA, Resistance output: 0~190Ω



Specifications:



Principle of signal acquisition

Float moving

Feeding (input powder)

9~36V

Accuracy

<1%

Signal format/ output format (Optional)

Option A: voltage 0~5V

Option B: current 4~20mA

Option C: Resistance 0~190Ω

Communication interface

RS232 or TX485

Measurement range

100mm~2000mm

Housing material

SUS304/316 stainless steel

working temperature

-40~+85 (-40~+185)

Lifespan/service

5 million times

Installation

SAE 5 holes or SAE 6 holes

BSP screw or NPT screw

Weight

400g
